Description
PRODUCT DESCRIPITION

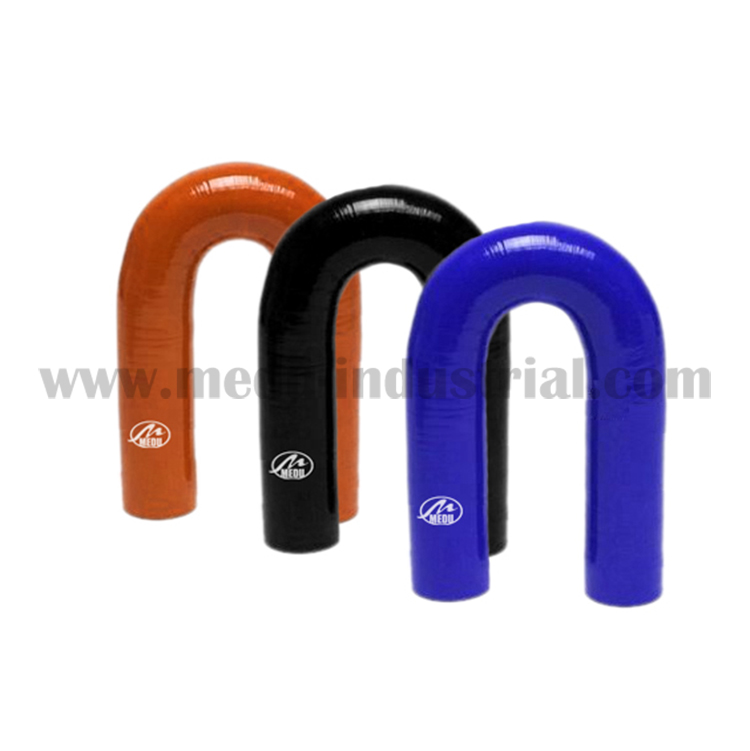

| Part Name | Silicone hose * Elbow 180 degree (U shape ) | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies | ||||||
| (P.s: Aramid &Fluor(FMVQ)arealso available on required) | ||||||
| Working Temperature | -40℃~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||
| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||
| Sr.No | MEDU NO | ID1 – ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | EL180-16/105W4P3 | 16 | 5/8 | 105×105×95 | 4 | 3 | |
| 2 | EL180-19/105W4P3 | 19 | 3/4 | 105×105×96 | 4 | 3 | |
| 3 | EL180-22/105W4P3 | 22 | 7/8 | 105×105×97 | 4 | 3 | |
| 4 | EL180-25/105W4P3 | 25 | 1 | 105×105×98 | 4 | 3 | |
| 5 | EL180-28/105W4P3 | 28 | 1 1/8 | 105×105×99 | 4 | 3 | |
| 6 | EL180-30/105W4P3 | 30 | 1 3/16 | 105×105×100 | 4 | 3 | |
| 7 | EL180-32/105W4P3 | 32 | 1 1/4 | 105×105×101 | 4 | 3 | |
| 8 | EL180-35/105W4P3 | 35 | 1 3/8 | 105×105×102 | 4 | 3 | |
| 9 | EL180-38/105W4P3 | 38 | 1 1/2 | 105×105×103 | 4 | 3 | |
| 10 | EL180-48/105W5P4 | 48 | 1 7/8 | 105×105×104 | 5 | 4 | |
| 11 | EL180-51/105W5P4 | 51 | 2 | 105×105×105 | 5 | 4 | |
| 12 | EL180-57/105W5P4 | 57 | 2 1/4 | 105×105×106 | 5 | 4 | |
| 13 | EL180-60/105W5P4 | 60 | 2 3/8 | 105×105×107 | 5 | 4 | |
| 14 | EL180-63/105W5P4 | 63 | 2 1/2 | 105×105×108 | 5 | 4 | |
| 15 | EL180-70/105W5P4 | 70 | 2 3/4 | 105×105×109 | 5 | 4 | |
| 16 | EL180-76/105W5P4 | 76 | 3 | 105×105×110 | 5 | 4 | |
| 17 | EL180-83/105W5P4 | 83 | 3 1/4 | 105×105×111 | 5 | 4 | |
| 18 | EL180-89/105W6P5 | 89 | 3 1/2 | 105×105×112 | 6 | 5 |
