PRODUCT DESCRIPITION

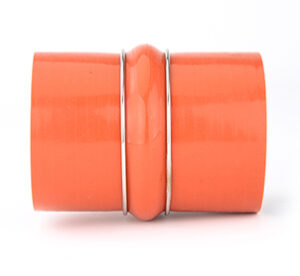

| Part Name | Silicone hose * 1 bellow with 2 rings | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies |
||||||
| 3.Metal ring:Stainlesssteel | ||||||
| (P.s: Aramid &Fluor(FMVQ)arealso available on required) |
||||||
| Working Temperature | -40℃~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||

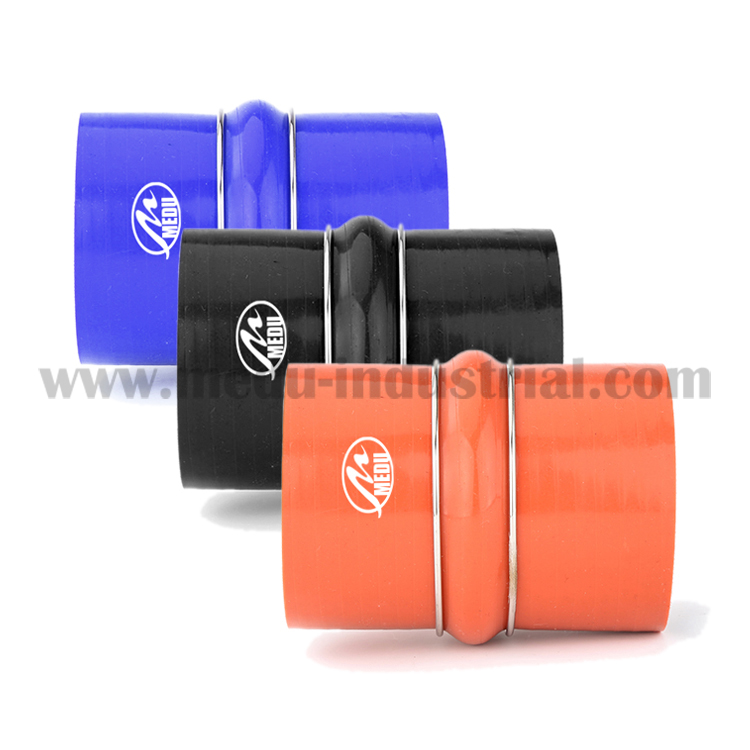

| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||
| Sr.No | MEDU NO | ID1 – ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | BL2-57/152/4 | 57 | 2 1/4 | 152 | 5 | 4 | |
| 2 | BL2-57/165/4 | 57 | 2 1/4 | 165 | 5 | 4 | |
| 3 | BL2-57/178/4 | 57 | 2 1/4 | 178 | 5 | 4 | |
| 4 | BL2-57/203/4 | 57 | 2 1/4 | 203 | 5 | 4 | |
| 5 | BL2-63.5/152/4 | 63.5 | 2 1/2 | 152 | 5 | 4 | |
| 6 | BL2-63.5/165/4 | 63.5 | 2 1/2 | 165 | 5 | 4 | |
| 7 | BL2-63.5/178/4 | 63.5 | 2 1/2 | 178 | 5 | 4 | |
| 8 | BL2-63.5/190/4 | 63.5 | 2 1/2 | 190 | 5 | 4 | |
| 9 | BL2-63.5/203/4 | 63.5 | 2 1/2 | 203 | 5 | 4 | |
| 10 | BL2-70/152/4 | 70 | 2 3/4 | 152 | 5 | 4 | |
| 11 | BL2-70/165/4 | 70 | 2 3/4 | 165 | 5 | 4 | |
| 12 | BL2-70/178/4 | 70 | 2 3/4 | 178 | 5 | 4 | |
| 13 | BL2-70/190/4 | 70 | 2 3/4 | 190 | 5 | 4 | |
| 14 | BL2-70/203/4 | 70 | 2 3/4 | 203 | 5 | 4 | |
| 15 | BL2-76/152/4 | 76 | 3 | 152 | 5 | 4 | |
| 16 | BL2-76/165/4 | 76 | 3 | 165 | 5 | 4 | |
| 17 | BL2-76/178/4 | 76 | 3 | 178 | 5 | 4 | |
| 18 | BL2-76/190/4 | 76 | 3 | 190 | 5 | 4 | |
| 19 | BL2-76/203/4 | 76 | 3 | 203 | 5 | 4 | |
| 20 | BL2-83/152/4 | 83 | 3 1/4 | 152 | 5 | 4 | |
| 21 | BL2-83/165/4 | 83 | 3 1/4 | 165 | 5 | 4 | |
| 22 | BL2-83/178/4 | 83 | 3 1/4 | 178 | 5 | 4 | |
| 23 | BL2-83/190/4 | 83 | 3 1/4 | 190 | 5 | 4 | |
| 24 | BL2-83/203/4 | 83 | 3 1/4 | 203 | 5 | 4 | |
| 25 | BL2-90/152/4 | 90 | 3 1/2 | 152 | 5 | 4 | |
| 26 | BL2-90/165/4 | 90 | 3 1/2 | 165 | 5 | 4 | |
| 27 | BL2-90/178/4 | 90 | 3 1/2 | 178 | 5 | 4 | |
| 28 | BL2-90/190/4 | 90 | 3 1/2 | 190 | 5 | 4 | |
| 29 | BL2-90/203/4 | 90 | 3 1/2 | 203 | 5 | 4 | |
| 30 | BL2-102/152/4 | 102 | 4 | 152 | 5 | 4 | |
| 31 | BL2-102/165/4 | 102 | 4 | 165 | 5 | 4 | |
| 32 | BL2-102/178/4 | 102 | 4 | 178 | 5 | 4 | |
| 33 | BL2-102/190/4 | 102 | 4 | 190 | 5 | 4 | |
| 34 | BL2-102/203/4 | 102 | 4 | 203 | 5 | 4 | |
| 35 | BL2-115/152/4 | 115 | 4 1/2 | 152 | 5 | 4 | |
| 36 | BL2-115/165/4 | 115 | 4 1/2 | 165 | 5 | 4 | |
| 37 | BL2-115/178/4 | 115 | 4 1/2 | 178 | 5 | 4 | |
| 38 | BL2-115/203/4 | 115 | 4 1/2 | 203 | 5 | 4 | |
| 39 | BL2-140/152/4 | 140 | 5 1/2 | 152 | 5 | 4 | |
| 40 | BL2-140/165/4 | 140 | 5 1/2 | 165 | 5 | 4 | |
| 41 | BL2-140/178/4 | 140 | 5 1/2 | 178 | 5 | 4 | |
| 42 | BL2-140/203/4 | 140 | 5 1/2 | 203 | 5 | 4 | |
| 43 | BL2-152/203/4 | 152 | 6 | 203 | 5 | 4 |
