Description
PRODUCT DESCRIPITION

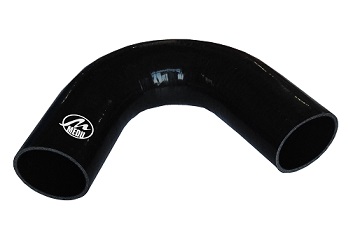

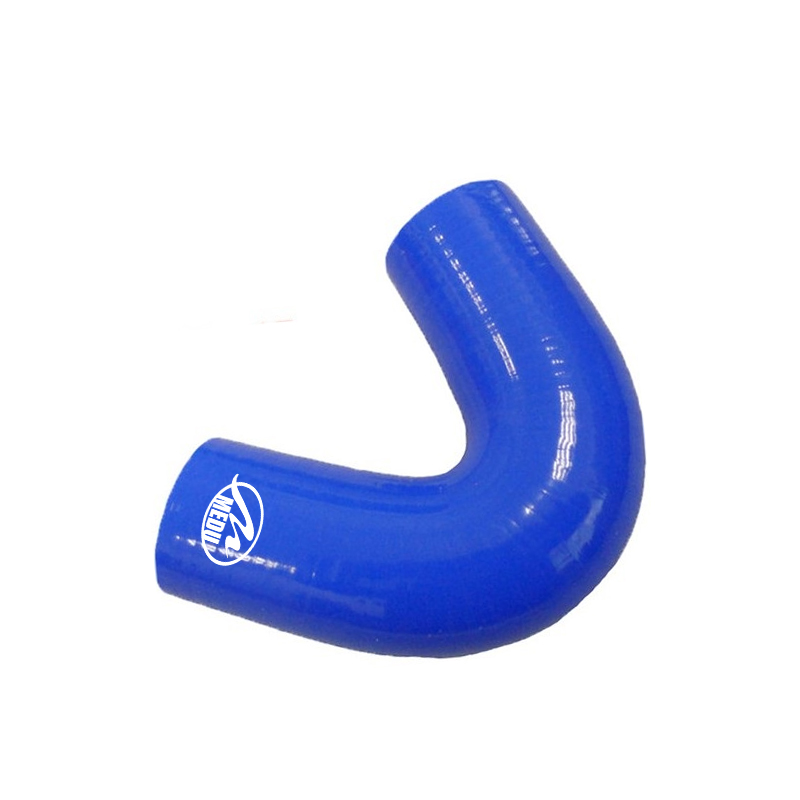

| Part Name | Silicone hose * Elbow 135 degree | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies |
||||||
| (P.s: Aramid &Fluor(FMVQ)arealso available on required) |
||||||
| Working Temperature | -40℃~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||
| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||

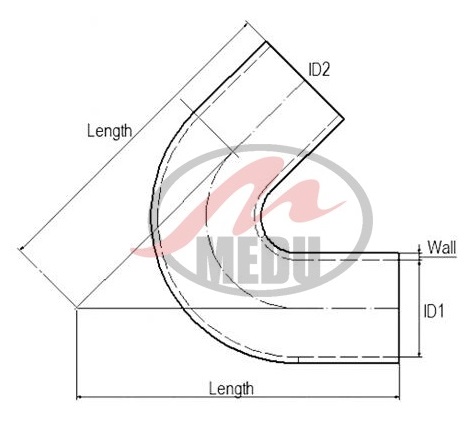

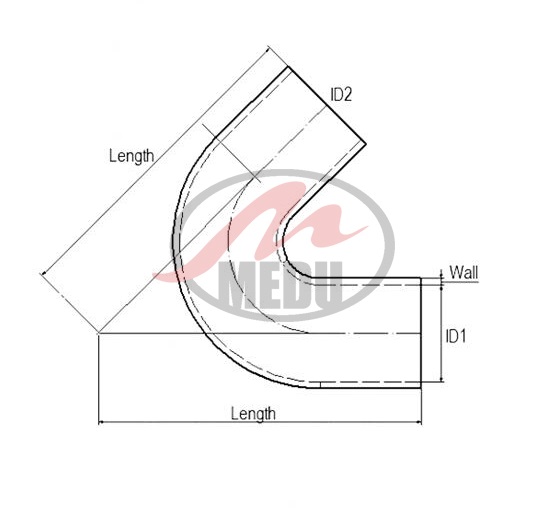

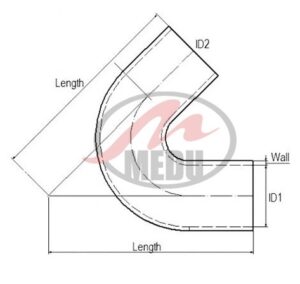

| Sr.No | MEDU NO | ID1 – ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | EL135-16/187W4P3 | 16 | 5/8 | 187 | 4 | 3 | |
| 2 | EL135-19/187W4P3 | 19 | 3/4 | 187 | 4 | 3 | |
| 3 | EL135-22/187W4P3 | 22 | 7/8 | 187 | 4 | 3 | |
| 4 | EL135-25/187W4P3 | 25 | 1 | 187 | 4 | 3 | |
| 5 | EL135-28/187W4P3 | 28 | 1 1/8 | 187 | 4 | 3 | |
| 6 | EL135-30/187W4P3 | 30 | 1 3/16 | 187 | 4 | 3 | |
| 7 | EL135-32/187W4P3 | 32 | 1 1/4 | 187 | 4 | 3 | |
| 8 | EL135-35/187W4P3 | 35 | 1 3/8 | 187 | 4 | 3 | |
| 9 | EL135-38/187W4P3 | 38 | 1 1/2 | 187 | 4 | 3 | |
| 10 | EL135-41/187W4P3 | 41 | 1 3/5 | 187 | 4 | 3 | |
| 11 | EL135-45/187W5P4 | 45 | 1 3/9 | 187 | 5 | 4 | |
| 12 | EL135-48/187W5P4 | 48 | 1 7/8 | 187 | 5 | 4 | |
| 13 | EL135-51/187W5P4 | 51 | 2 | 187 | 5 | 4 | |
| 14 | EL135-54/187W5P4 | 54 | 2 1/8 | 187 | 5 | 4 | |
| 15 | EL135-57/187W5P4 | 57 | 2 1/4 | 187 | 5 | 4 | |
| 16 | EL135-60/187W5P4 | 60 | 2 3/8 | 187 | 5 | 4 | |
| 17 | EL135-63/187W5P4 | 63 | 2 1/2 | 187 | 5 | 4 | |
| 18 | EL135-70/187W5P4 | 70 | 2 3/4 | 187 | 5 | 4 | |
| 19 | EL135-76/187W5P4 | 76 | 3 | 187 | 5 | 4 | |
| 20 | EL135-83/187W5P4 | 83 | 3 1/4 | 187 | 5 | 4 | |
| 21 | EL135-89/187W6P5 | 89 | 3 1/2 | 187 | 6 | 5 |
