Description
PRODUCT DESCRIPITION
| Part Name |

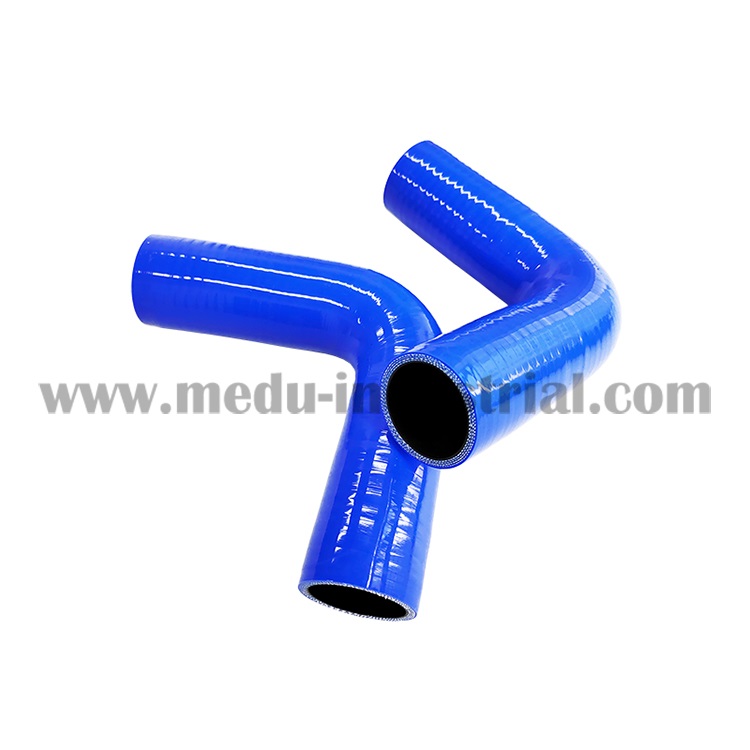

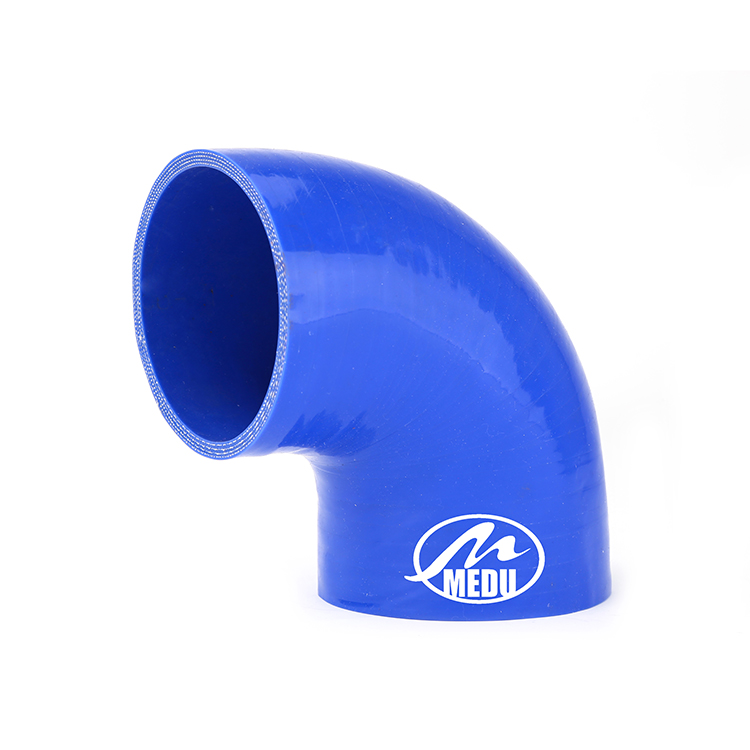

Silicone hose * Elbow 90 degree | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies |
||||||
| (P.s: Aramid &Fluor(FMVQ)arealso available on required) |
||||||
| Working Temperature | -40℃~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||
| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||

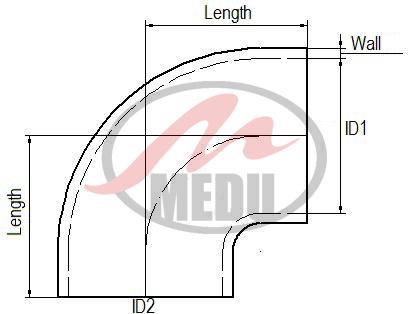

| Sr.No | MEDU NO | ID1 – ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | EL90-6.5/63W4P3 | 6.5 | 1/4 | 63 | 4 | 3 | |
| 2 | EL90-8/63W4P3 | 8 | 5/16 | 63 | 4 | 3 | |
| 3 | EL90-9.5/63W4P3 | 9.5 | 3/8 | 63 | 4 | 3 | |
| 4 | EL90-11/63W4P3 | 11 | 7/16 | 63 | 4 | 3 | |
| 5 | EL90-13/102W4P3 | 13 | 1/2 | 102 | 4 | 3 | |
| 6 | EL90-16/102W4P3 | 16 | 5/8 | 102 | 4 | 3 | |
| 7 | EL90-19/102W4P3 | 19 | 3/4 | 102 | 4 | 3 | |
| 8 | EL90-22/102W4P3 | 22 | 7/8 | 102 | 4 | 3 | |
| 9 | EL90-25/102W4P3 | 25 | 1 | 102 | 4 | 3 | |
| 10 | EL90-28/102W4P3 | 28 | 1 1/8 | 102 | 4 | 3 | |
| 11 | EL90-30/102W4P3 | 30 | 1 3/16 | 102 | 4 | 3 | |
| 12 | EL90-32/102W4P3 | 32 | 1 1/4 | 102 | 4 | 3 | |
| 13 | EL90-35/102W4P3 | 35 | 1 3/8 | 102 | 4 | 3 | |
| 14 | EL90-38/102W4P3 | 38 | 1 1/2 | 102 | 4 | 3 | |
| 15 | EL90-41/102W4P3 | 41 | 1 5/8 | 102 | 4 | 3 | |
| 16 | EL90-45/102W4P3 | 45 | 1 3/4 | 102 | 4 | 3 | |
| 17 | EL90-48/102W5P4 | 48 | 1 7/8 | 102 | 5 | 4 | |
| 18 | EL90-51/102W5P4 | 51 | 2 | 102 | 5 | 4 | |
| 19 | EL90-54/102W5P4 | 54 | 2 1/8 | 102 | 5 | 4 | |
| 20 | EL90-57/102W5P4 | 57 | 2 1/4 | 102 | 5 | 4 | |
| 21 | EL90-60/125W5P4 | 60 | 2 3/8 | 125 | 5 | 4 | |
| 22 | EL90-63/125W5P4 | 63 | 2 1/2 | 125 | 5 | 4 | |
| 23 | EL90-65/125W5P4 | 65 | 2 9/16 | 125 | 5 | 4 | |
| 24 | EL90-70/125W5P4 | 70 | 2 3/4 | 125 | 5 | 4 | |
| 25 | EL90-76/125W5P4 | 76 | 3 | 125 | 5 | 4 | |
| 26 | EL90-80/125W5P4 | 80 | 3 1/8 | 125 | 5 | 4 | |
| 27 | EL90-83/125W5P4 | 83 | 3 1/4 | 125 | 5 | 4 | |
| 28 | EL90-89/125W6P5 | 89 | 3 1/2 | 125 | 6 | 5 | |
| 29 | EL90-102/152W6P5 | 102 | 4 | 152 | 6 | 5 | |
| 30 | EL90-108/152W6P5 | 108 | 4 | 152 | 6 | 5 | |
| 31 | EL90-114/178W6P5 | 114 | 4 1/2 | 178 | 6 | 5 | |
| 32 | EL90-127/178W6P5 | 127 | 5 | 178 | 6 | 5 | |
| 33 | EL90-152/178W7P6 | 152 | 6 | 178 | 7 | 6 |
