Description
PRODUCT DESCRIPITION
| Part Name | Silicone hose * Reducing Elbow 90 degree | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies |
||||||
| (P.s: Aramid &Fluor(FMVQ)arealso available on required) |
||||||
| Working Temperature | -40℃~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||
| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||

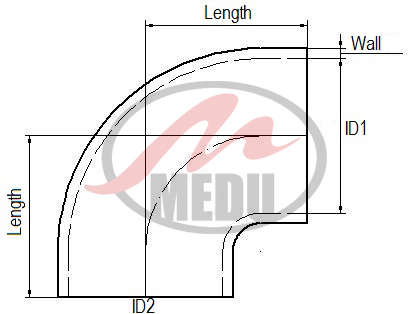

| Sr.No | MEDU NO | ID1 – ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | REL90-16>13/102W4P3 | 16>13 | 5/8>1/2 | 102 | 4 | 3 | |
| 2 | REL90-19>13/102W4P3 | 19>13 | 3/4>1/2 | 102 | 4 | 3 | |
| 3 | REL90-19>16/102W4P3 | 19>16 | 3/4>5/8 | 102 | 4 | 3 | |
| 4 | REL90-22>16/102W4P3 | 22>16 | 6/7>5/8 | 102 | 4 | 3 | |
| 5 | REL90-22>19/102W4P3 | 22>19 | 6/7>3/4 | 102 | 4 | 3 | |
| 6 | REL90-25>19/102W4P3 | 25>19 | 1>3/4 | 102 | 4 | 3 | |
| 7 | REL90-28>22/102W4P3 | 28>22 | 1 1/9>6/7 | 102 | 4 | 3 | |
| 8 | REL90-28>25/102W4P3 | 28>25 | 1 1/9>1 | 102 | 4 | 3 | |
| 9 | REL90-32>19/102W4P3 | 32>19 | 1 1/4>3/4 | 102 | 4 | 3 | |
| 10 | REL90-32>25/102W4P3 | 32>25 | 1 1/4>1 | 102 | 4 | 3 | |
| 11 | REL90-32>28/102W4P3 | 32>28 | 1 1/4> 1 1/9 | 102 | 4 | 3 | |
| 12 | REL90-35>22/102W4P3 | 35>22 | 1 3/8 >6/7 | 102 | 4 | 3 | |
| 13 | REL90-35>25/102W4P3 | 35>25 | 1 3/8>1 | 102 | 4 | 3 | |
| 14 | REL90-35>28/102W4P3 | 35>28 | 1 3/8>1 1/9 | 102 | 4 | 3 | |
| 15 | REL90-35>30/102W4P3 | 35>30 | 1 3/8>1 1/6 | 102 | 4 | 3 | |
| 16 | REL90-35>32/102W4P3 | 35>32 | 1 3/8>1 1/4 | 102 | 4 | 3 | |
| 17 | REL90-38>22/102W4P3 | 38>22 | 1 1/2> 6/7 | 102 | 4 | 3 | |
| 18 | REL90-38>25/102W4P3 | 38>25 | 1 1/2 >1 | 102 | 4 | 3 | |
| 19 | REL90-38>28/102W4P3 | 38>28 | 1 1/2>1 1/9 | 102 | 4 | 3 | |
| 20 | REL90-38>32/102W4P3 | 38>32 | 1 1/2>1 1/4 | 102 | 4 | 3 | |
| 21 | REL90-38>35/102W4P3 | 38>35 | 1 1/2>1 3/8 | 102 | 4 | 3 | |
| 22 | REL90-41>35/102W4P3 | 41>35 | 1 3/5> 1 3/8 | 102 | 4 | 3 | |
| 23 | REL90-45>32/102W4P3 | 45>32 | 1 7/9>1 1/4 | 102 | 4 | 3 | |
| 24 | REL90-45>38/102W4P3 | 45>38 | 1 7/9>1 1/2 | 102 | 4 | 3 | |
| 25 | REL90-48>30/102W4P3 | 48>30 | 1 8/9>1 1/6 | 102 | 4 | 3 | |
| 26 | REL90-51>38/102W5P4 | 51>38 | 2> 1 1/2 | 102 | 5 | 4 | |
| 27 | REL90-51>45/102W5P4 | 51>45 | 2> 1 7/9 | 102 | 5 | 4 | |
| 28 | REL90-54>48/102W5P4 | 54>48 | 2 1/8> 1 8/9 | 102 | 5 | 4 | |
| 29 | REL90-57>51/102W5P4 | 57>51 | 2 1/4>2 | 102 | 5 | 4 | |
| 30 | REL90-60>51/102W5P4 | 60>51 | 2 1/3>2 | 102 | 5 | 4 | |
| 31 | REL90-63>51/125W5P4 | 63>51 | 2 1/2>2 | 125 | 5 | 4 | |
| 32 | REL90-63>57/125W5P4 | 63>57 | 2 1/2>2 1/4 | 125 | 5 | 4 | |
| 33 | REL90-63>60/125W5P4 | 63>60 | 2 1/2> 2 1/3 | 125 | 5 | 4 | |
| 34 | REL90-70>51/125W5P4 | 70>51 | 2 3/4>2 | 125 | 5 | 4 | |
| 35 | REL90-70>57/125W5P4 | 70>57 | 2 3/4>2 1/4 | 125 | 5 | 4 | |
| 36 | REL90-70>60/125W5P4 | 70>60 | 2 3/4> 2 1/3 | 125 | 5 | 4 | |
| 37 | REL90-70>63/125W5P4 | 70>63 | 2 3/4>2 1/2 | 125 | 5 | 4 | |
| 38 | REL90-76>51/125W5P4 | 76>51 | 3>2 | 125 | 5 | 4 | |
| 39 | REL90-76>60/125W5P4 | 76>60 | 3>2 1/3 | 125 | 5 | 4 | |
| 40 | REL90-76>63/125W5P4 | 76>63 | 3>2 1/2 | 125 | 5 | 4 | |
| 41 | REL90-76>67/125W5P4 | 76>67 | 3>2 2/3 | 125 | 5 | 4 | |
| 42 | REL90-76>70/125W5P4 | 76>70 | 3>2 3/4 | 125 | 5 | 4 | |
| 43 | REL90-80>70/125W5P4 | 80>70 | 3 1/7>2 3/4 | 125 | 5 | 4 | |
| 44 | REL90-89>76/125W6P5 | 89>76 | 3 1/2>3 | 125 | 6 | 5 | |
| 45 | REL90-90>80/125W6P5 | 90>80 | 3 1/2>3 1/7 | 125 | 6 | 5 | |
| 46 | REL90-102>76/152W6P5 | 102>76 | 4>3 | 152 | 6 | 5 | |
| 47 | REL90-102>90/152W6P5 | 102>90 | 4> 3 1/2 | 152 | 6 | 5 |
