Description
PRODUCT DESCRIPITION

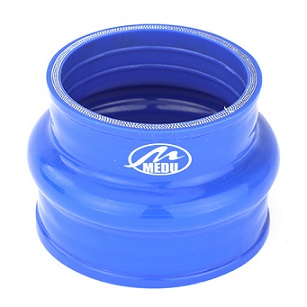

| Part Name | Silicone hose * Reducing hump hose | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies |
||||||
| (P.s: Aramid & Fluor(FMVQ) are also available on required) |
||||||
| Working Temperature | -40℃ ~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||
| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||

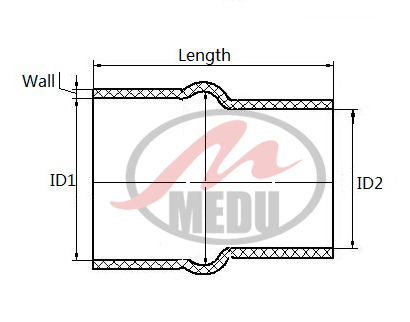

| Sr.No | MEDU NO | ID1 – ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | RHP-51>45/152W5P4 | 51>45 | 2>1 7/9 | 152 | 5 | 4 | |
| 2 | RHP-54>48/152W5P4 | 54>48 | 2 1/8>1 8/9 | 152 | 5 | 4 | |
| 3 | RHP-57-51/152W5P4 | 57-51 | 1 2/4-2 | 152 | 5 | 4 | |
| 4 | RHP-63-51/152W5P4 | 63-51 | 2 1/2-2 | 152 | 5 | 4 | |
| 5 | RHP-76-48/152W5P4 | 76-48 | 3-1 8/9 | 152 | 5 | 4 | |
| 6 | RHP-76-51/152W5P4 | 76-51 | 3-2 | 152 | 5 | 4 | |
| 7 | RHP-76-57/152W5P4 | 76-57 | 3-2 1/4 | 152 | 5 | 4 | |
| 8 | RHP-76-63/152W5P4 | 76-63 | 3-2 1/2 | 152 | 5 | 4 | |
| 9 | RHP-83-57/152W5P4 | 83-57 | 3 1/4-2 1/4 | 152 | 5 | 4 | |
| 10 | RHP-83-63/152W5P4 | 83-63 | 3 1/4-2 1/2 | 152 | 5 | 4 | |
| 11 | RHP-83-70/152W5P4 | 83-70 | 3 1/4-2 3/4 | 152 | 5 | 4 | |
| 12 | RHP-83-76/152W5P4 | 83-76 | 3 1/4-3 | 152 | 5 | 4 | |
| 13 | RHP-89-57/152W5P4 | 89-57 | 3 1/2-2 1/4 | 152 | 5 | 4 | |
| 14 | RHP-89-63/152W5P4 | 89-63 | 3 1/2-2 1/2 | 152 | 5 | 4 | |
| 15 | RHP-89-76/152W5P4 | 89-76 | 3 1/2-3 | 152 | 5 | 4 |
