Description
PRODUCT DESCRIPITION

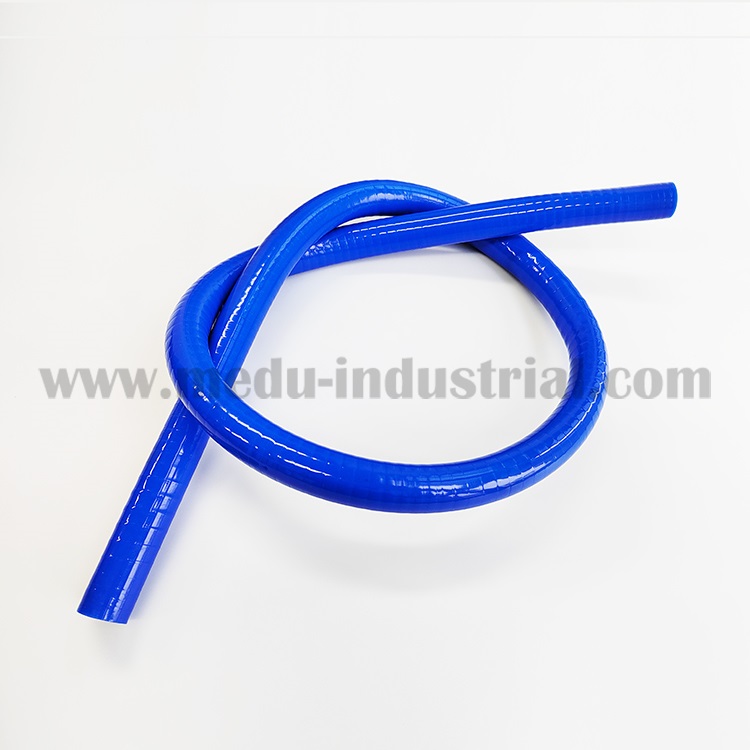

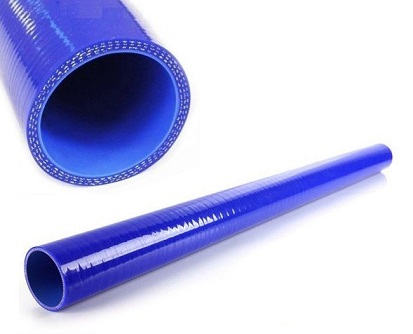

| Part Name | Silicone hose * Straight long hose | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies |
||||||
| (P.s: Aramid &Fluor(FMVQ)arealso available on required) |
||||||
| Working Temperature | -40℃~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||
| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||

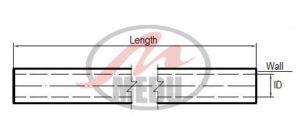

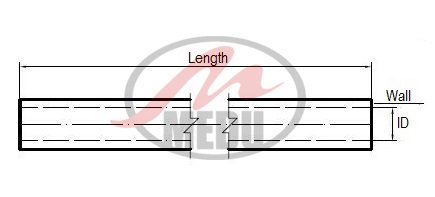

| Sr.No | MEDU NO | ID1 – ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | LH-6.5/1000W4P3 | 6.5 | 1/4 | 1000 | 4 | 3 | |
| 2 | LH-8/1000W4P3 | 8 | 5/16 | 1000 | 4 | 3 | |
| 3 | LH-9.5/1000W4P3 | 9.5 | 3/8 | 1000 | 4 | 3 | |
| 4 | LH-11/1000W4P3 | 11 | 7/16 | 1000 | 4 | 3 | |
| 5 | LH-13/1000W4P3 | 13 | 1/2 | 1000 | 4 | 3 | |
| 6 | LH-16/1000W4P3 | 16 | 5/8 | 1000 | 4 | 3 | |
| 7 | LH-19/1000W4P3 | 19 | 3/4 | 1000 | 4 | 3 | |
| 8 | LH-22/1000W4P3 | 22 | 7/8 | 1000 | 4 | 3 | |
| 9 | LH-25/1000W4P3 | 25 | 1 | 1000 | 4 | 3 | |
| 10 | LH-28/1000W4P3 | 28 | 1 1/8 | 1000 | 4 | 3 | |
| 11 | LH-30/1000W4P3 | 30 | 1 3/16 | 1000 | 4 | 3 | |
| 12 | LH-32/1000W4P3 | 32 | 1 1/4 | 1000 | 4 | 3 | |
| 13 | LH-35/1000W4P3 | 35 | 1 3/8 | 1000 | 4 | 3 | |
| 14 | LH-38/1000W4P3 | 38 | 1 1/2 | 1000 | 4 | 3 | |
| 15 | LH-41/1000W4P3 | 41 | 1 5/8 | 1000 | 4 | 3 | |
| 16 | LH-45/1000W4P3 | 45 | 1 3/4 | 1000 | 4 | 3 | |
| 17 | LH-48/1000W5P4 | 48 | 1 7/8 | 1000 | 5 | 4 | |
| 18 | LH-51/1000W5P4 | 51 | 2 | 1000 | 5 | 4 | |
| 19 | LH-54/1000W5P4 | 54 | 2 1/8 | 1000 | 5 | 4 | |
| 20 | LH-57/1000W5P4 | 57 | 2 1/4 | 1000 | 5 | 4 | |
| 21 | LH-60/1000W5P4 | 60 | 2 3/8 | 1000 | 5 | 4 | |
| 22 | LH-63/1000W5P4 | 63 | 2 1/2 | 1000 | 5 | 4 | |
| 23 | LH-65/1000W5P4 | 65 | 2 9/16 | 1000 | 5 | 4 | |
| 24 | LH-68/1000W5P4 | 68 | 2 2/3 | 1000 | 5 | 4 | |
| 25 | LH-70/1000W5P4 | 70 | 2 3/4 | 1000 | 5 | 4 | |
| 26 | LH-76/1000W5P4 | 76 | 3 | 1000 | 5 | 4 | |
| 27 | LH-80/1000W5P4 | 80 | 3 1/8 | 1000 | 5 | 4 | |
| 28 | LH-83/1000W5P4 | 83 | 3 1/4 | 1000 | 5 | 4 | |
| 29 | LH-89/1000W6P5 | 89 | 3 1/2 | 1000 | 6 | 5 | |
| 30 | LH-95/1000W6P5 | 95 | 3 3/4 | 1000 | 6 | 5 | |
| 31 | LH-100/1000W6P5 | 100 | 4 | 1000 | 6 | 5 | |
| 32 | LH-102/1000W6P5 | 102 | 4 | 1000 | 6 | 5 | |
| 33 | LH-105/1000W6P5 | 105 | 4 1/7 | 1000 | 6 | 5 | |
| 34 | LH-114/1000W6P5 | 114 | 4 1/2 | 1000 | 6 | 5 | |
| 35 | LH-127/1000W6P5 | 127 | 5 | 1000 | 6 | 5 | |
| 36 | LH-152/1000W7P6 | 152 | 6 | 1000 | 7 | 6 |
