1.PRODUCT DESCRIPITION

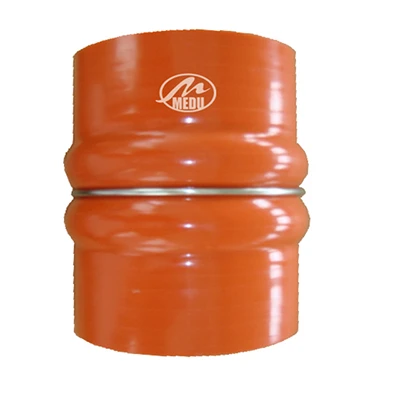

| Part Name | Silicone hose * 2 bellow with 1 ring | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies | ||||||
| 3.Metal ring:Stainlesssteel | ||||||
| (P.s: Aramid &Fluor(FMVQ)arealso available on required) | ||||||
| Working Temperature | -40℃~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||
| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||
 |
 |

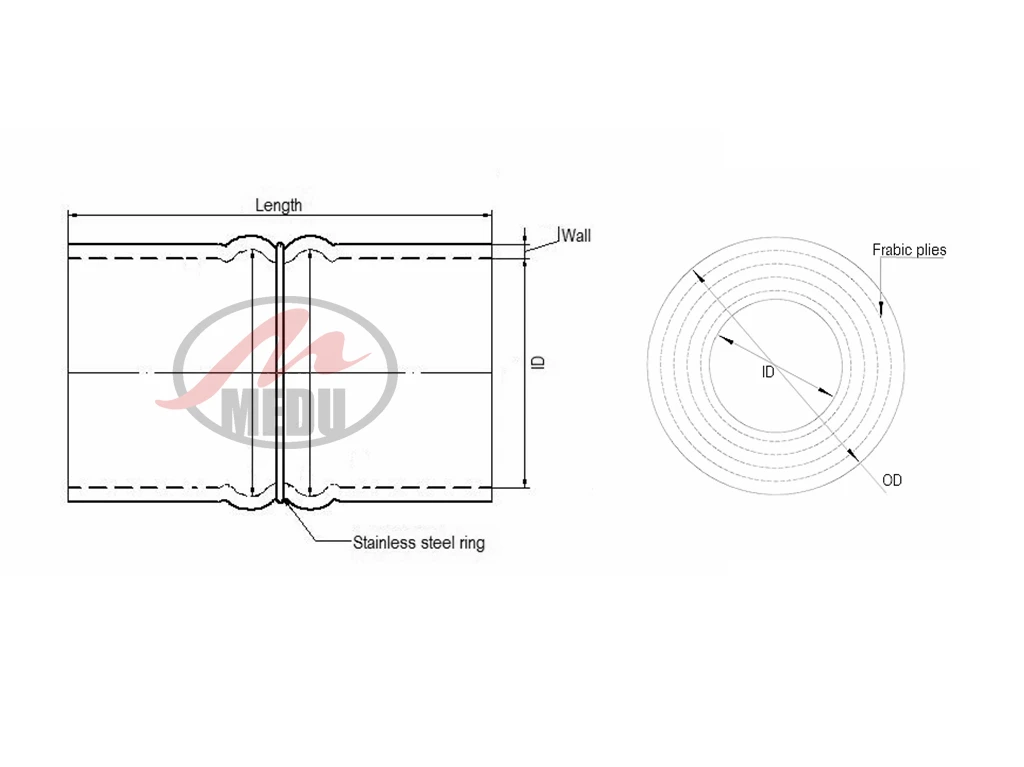

| Sr.No | MEDU NO | ID1 - ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | BL2/1-51/102W5P4 | 51 | 2 | 102 | 5 | 4 | |
| 2 | BL2/1-54/102W5P4 | 54 | 2 1/8 | 102 | 5 | 4 | |
| 3 | BL2/1-57/102W5P4 | 57 | 2 1/4 | 102 | 5 | 4 | |
| 4 | BL2/1-60/102W5P4 | 60 | 2 1/3 | 102 | 5 | 4 | |
| 5 | BL2/1-63.5/102W5P4 | 63.5 | 2 1/2 | 102 | 5 | 4 | |
| 6 | BL2/1-70/102W5P4 | 70 | 2 3/4 | 102 | 5 | 4 | |
| 7 | BL2/1-72/102W5P4 | 72 | 2 5/6 | 102 | 5 | 4 | |
| 8 | BL2/1-76/102W5P4 | 76 | 3 | 102 | 5 | 4 | |
| 9 | BL2/1-80/102W5P4 | 80 | 3 1/7 | 102 | 5 | 4 | |
| 10 | BL2/1-83/102W5P4 | 83 | 3 1/4 | 102 | 5 | 4 | |
| 11 | BL2/1-89/102W5P4 | 89 | 3 1/2 | 102 | 5 | 4 | |
| 12 | BL2/1-102/102W5P4 | 102 | 4 | 102 | 5 | 4 |
2.SEND INQUIRY
If you have any enquiry about quotation or cooperation, please feel free to email us at MEDUEXPORT@163.COM or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
