1.PRODUCT DESCRIPITION

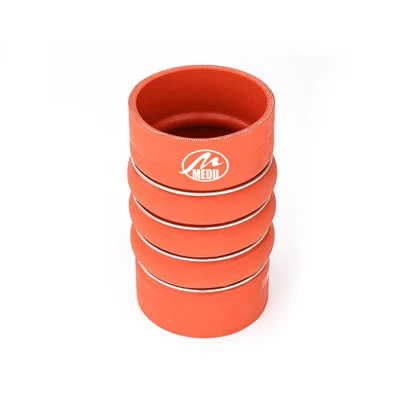

| Part Name | Silicone hose *3 bellow with 4 rings | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies | ||||||
| 3.Metal ring:Stainlesssteel | ||||||
| (P.s: Aramid &Fluor(FMVQ)arealso available on required) | ||||||
| Working Temperature | -40℃~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||
| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||
 |
 |
 |

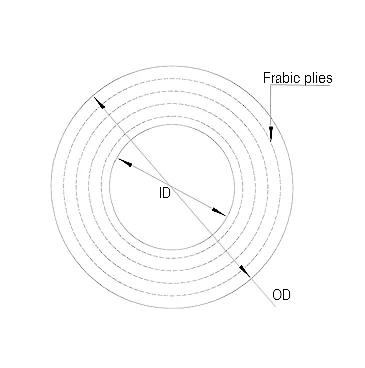

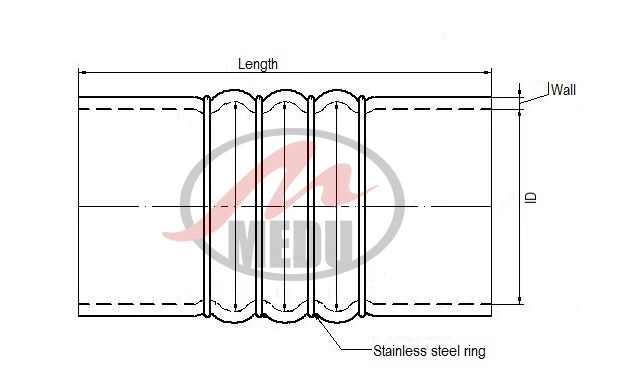

| Sr.No | MEDU NO | ID1 - ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | BL3-63.5/152W5P4 | 63.5 | 2 1/2 | 152 | 5 | 4 | |
| 2 | BL3-63.5/165W5P4 | 63.5 | 2 1/2 | 165 | 5 | 4 | |
| 3 | BL3-63.5/178W5P4 | 63.5 | 2 1/2 | 178 | 5 | 4 | |
| 4 | BL3-63.5/190W5P4 | 63.5 | 2 1/2 | 190 | 5 | 4 | |
| 5 | BL3-63.5/203W5P4 | 63.5 | 2 1/2 | 203 | 5 | 4 | |
| 6 | BL3-70/152W5P4 | 70 | 2 3/4 | 152 | 5 | 4 | |
| 7 | BL3-70/165W5P4 | 70 | 2 3/4 | 165 | 5 | 4 | |
| 8 | BL3-70/178W5P4 | 70 | 2 3/4 | 178 | 5 | 4 | |
| 9 | BL3-70/190W5P4 | 70 | 2 3/4 | 190 | 5 | 4 | |
| 10 | BL3-70/203W5P4 | 70 | 2 3/4 | 203 | 5 | 4 | |
| 11 | BL3-76/152W5P4 | 76 | 3 | 152 | 5 | 4 | |
| 12 | BL3-76/165W5P4 | 76 | 3 | 165 | 5 | 4 | |
| 13 | BL3-76/178W5P4 | 76 | 3 | 178 | 5 | 4 | |
| 14 | BL3-76/190W5P4 | 76 | 3 | 190 | 5 | 4 | |
| 15 | BL3-76/203W5P4 | 76 | 3 | 203 | 5 | 4 | |
| 16 | BL3-89/152W5P4 | 89 | 3 1/2 | 152 | 5 | 4 | |
| 17 | BL3-89/165W5P4 | 89 | 3 1/2 | 165 | 5 | 4 | |
| 18 | BL3-89/178W5P4 | 89 | 3 1/2 | 178 | 5 | 4 | |
| 19 | BL3-89/190W5P4 | 89 | 3 1/2 | 190 | 5 | 4 | |
| 20 | BL3-89/203W5P4 | 89 | 3 1/2 | 203 | 5 | 4 | |
| 21 | BL3-102/152W5P4 | 102 | 4 | 152 | 5 | 4 | |
| 22 | BL3-102/165W5P4 | 102 | 4 | 165 | 5 | 4 | |
| 23 | BL3-102/178W5P4 | 102 | 4 | 178 | 5 | 4 | |
| 24 | BL3-102/190W5P4 | 102 | 4 | 190 | 5 | 4 | |
| 25 | BL3-102/203W5P4 | 102 | 4 | 203 | 5 | 4 | |
| 26 | BL3-114/152W5P4 | 114 | 4 1/2 | 152 | 5 | 4 | |
| 27 | BL3-114/190W5P4 | 114 | 4 1/2 | 190 | 5 | 4 | |
| 28 | BL3-127/152W5P4 | 127 | 5 | 152 | 5 | 4 | |
| 29 | BL3-127/178W5P4 | 127 | 5 | 178 | 5 | 4 | |
| 30 | BL3-127/203W5P4 | 127 | 5 | 203 | 5 | 4 | |
| 31 | BL3-152/203W5P4 | 152 | 6 | 203 | 5 | 4 |
