Description
PRODUCT DESCRIPITION

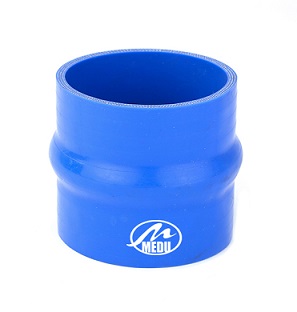

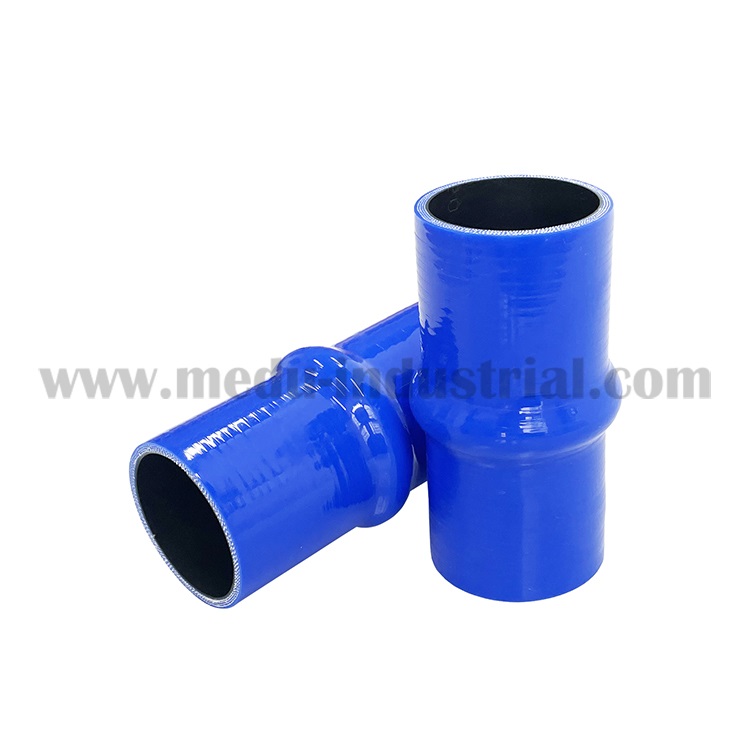

| Part Name | Silicone hose * Hump hose | |||||
| Material | 1.Rubber: 100% Silicone(MVQ) | |||||
| 2.Reinforcement: Polyester,3-4Plies |
||||||
| (P.s: Aramid &Fluor(FMVQ)arealso available on required) |
||||||
| Working Temperature | -40℃~ 200℃ | |||||
| Working Pressure | 0.3Mpa(43Psi) | |||||
| Standard color | Red/Black/Blue/ Customized | |||||
| Surface | Smooth | |||||
| Marking | MEDU Logo/Customized logo/Part Number | |||||
| Quality Grade | high quality | |||||
| Price Grade | Competitive | |||||
| Certificate | TS16949, ISO9001 | |||||
| Warrantee | 2years | |||||
| Business type | Manfacturer | |||||
| Origin | Zhejiang/China | |||||
| Application | For Auto/Marine/Machiney/Industry | |||||
| Sr.No | MEDU NO | ID1 – ID2(mm) | ID1- ID2(inch) | Length(mm) | Wall(mm) | Fabric Ply | Remarks |
| 1 | HP-51/102W5P4 | 51 | 2 | 102 | 5 | 4 | |
| 2 | HP-54/102W5P4 | 54 | 2 1/8 | 102 | 5 | 4 | |
| 3 | HP-57/102W5P4 | 57 | 2 1/4 | 102 | 5 | 4 | |
| 4 | HP-60/102W5P4 | 60 | 2 1/3 | 102 | 5 | 4 | |
| 5 | HP-63/102W5P4 | 63 | 2 1/2 | 102 | 5 | 4 | |
| 6 | HP-70/102W5P4 | 70 | 2 3/4 | 102 | 5 | 4 | |
| 7 | HP-76/102W5P4 | 76 | 3 | 102 | 5 | 4 | |
| 8 | HP-80/102W5P4 | 80 | 3 1/7 | 102 | 5 | 4 | |
| 9 | HP-83/102W5P4 | 83 | 3 1/4 | 102 | 5 | 4 | |
| 10 | HP-90/102W5P4 | 90 | 3 1/2 | 102 | 5 | 4 | |
| 11 | HP-102/102W5P4 | 102 | 4 | 102 | 5 | 4 | |
| 12 | HP-114/102W5P4 | 114 | 4 1/2 | 102 | 5 | 4 |
